Direction Control Valves

5 Products

Verified Suppliers

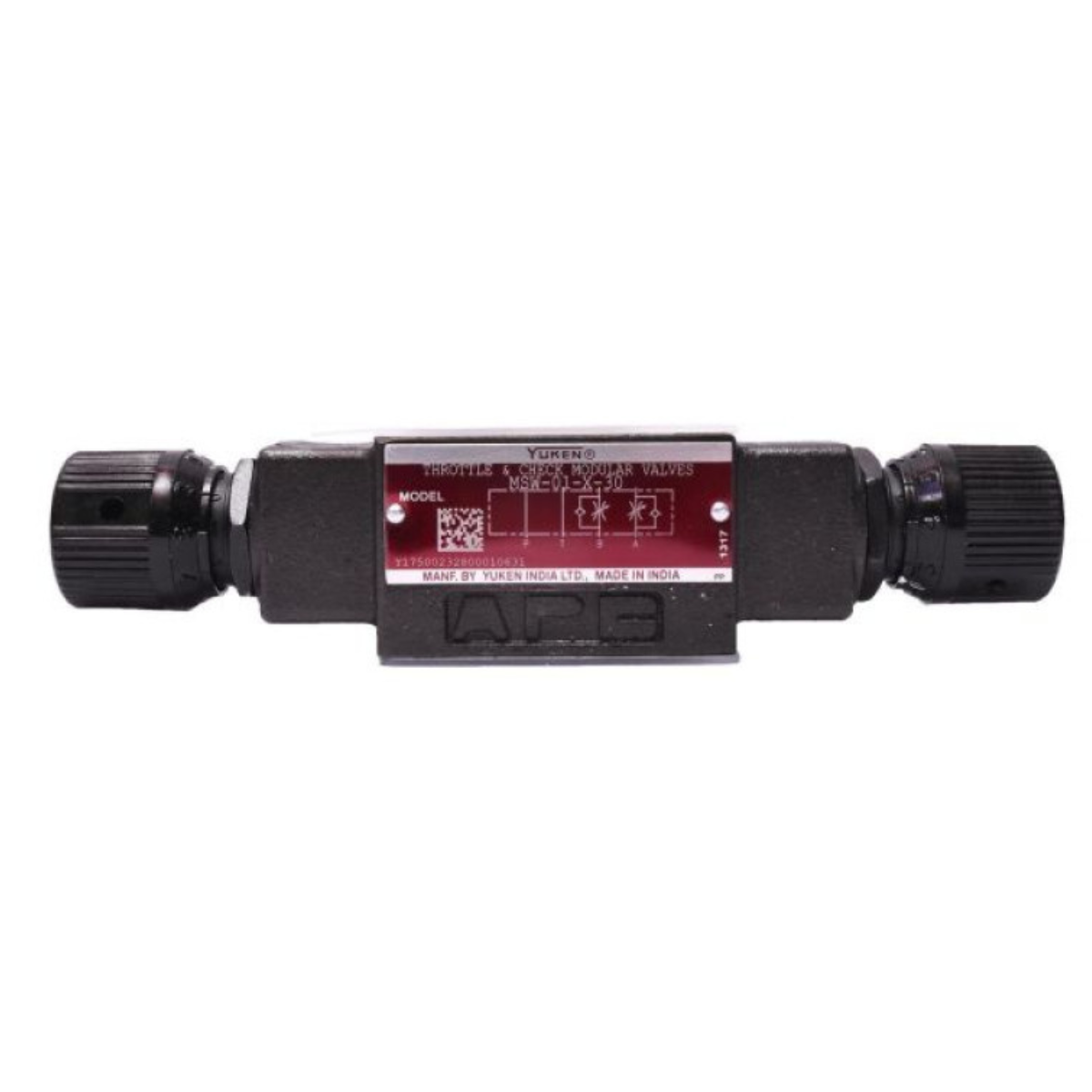

MSW 01 X 30 Direction Control Valve | Hydraulic Flow Control Valve for Industrial Systems

MSW 01 X 30 Direction Control Valve | Hydraulic Flow Control Valve for Industrial Systems

₹5,500

Specification	Details
Product Name	MSW 01 X 30 Direction Control Valve
Product Type	Hydraulic Direction Control Valve
Valve Operation	Directional Flow Control
Model	MSW 01 X 30
Body Material	High-Grade Cast Iron
Mounting Type	Subplate Mount
Hydraulic Fluid	Mineral Hydraulic Oil
Maximum Operating Pressure	315 Bar
Maximum Flow Rate	30 L/min
Operating Temperature	-20°C to +70°C
Seal Material	NBR (Standard)
Application	Industrial Hydraulic Systems
Installation	Horizontal or Vertical
Maintenance	Low Maintenance

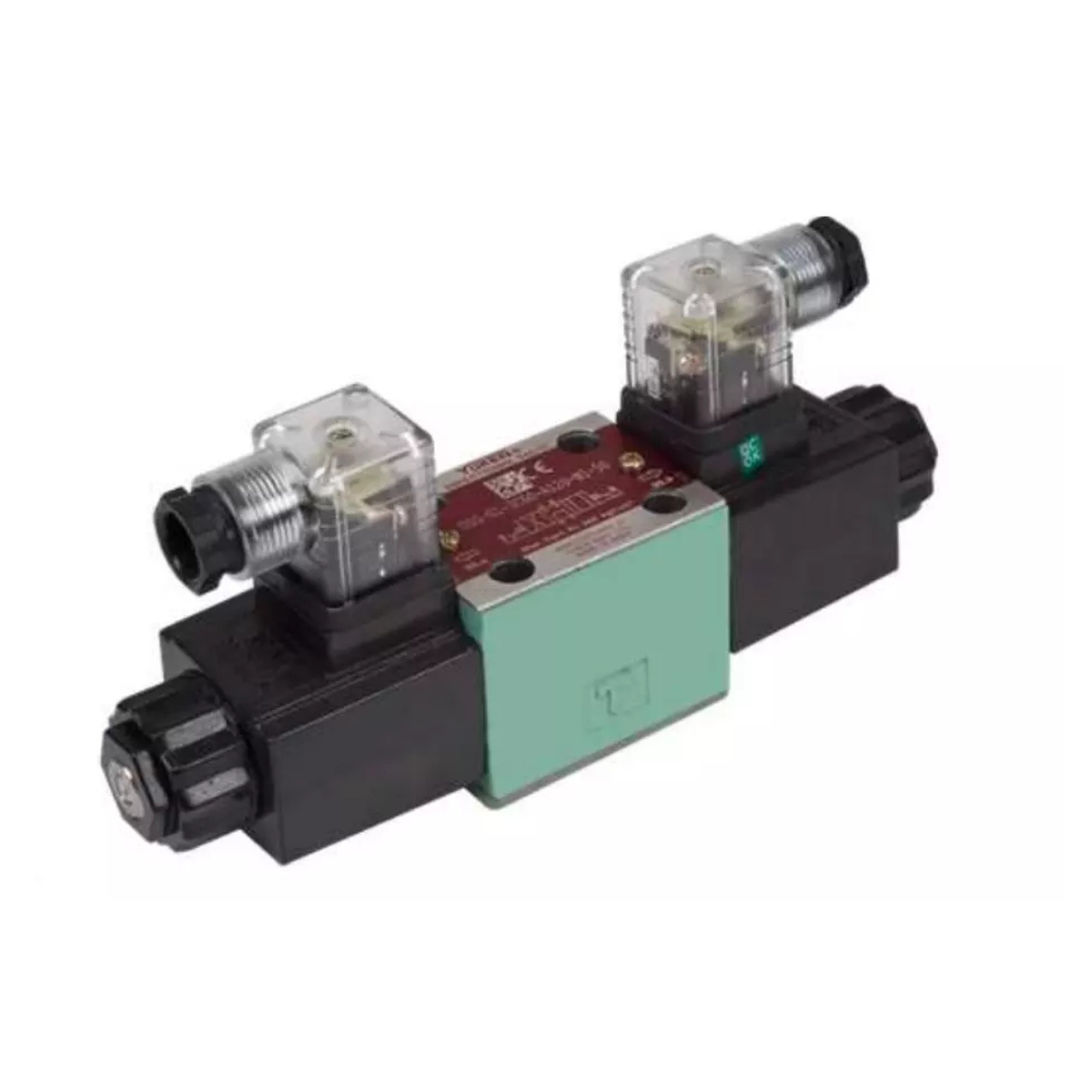

DSG 03 3C9 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

DSG 03 3C9 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

₹5,500

Specification	Value
Product Name	DSG 03 3C9 D24 N1 50 Direction Control Valve
Valve Type	Hydraulic Solenoid Operated Direction Control Valve
Model	DSG 03 3C9 D24 N1 50
Operation Type	Solenoid Operated
Coil Voltage	24V DC
Spool Type	3C9
Number of Ports	4-Way
Number of Positions	3 Position
Mounting Type	Subplate Mount (NG6 / CETOP 03 Compatible)
Body Material	High-Strength Cast Iron
Hydraulic Fluid	Mineral Hydraulic Oil
Maximum Operating Pressure	315 Bar
Maximum Flow Rate	60 L/min
Operating Temperature	-20°C to +70°C
Application	Industrial Hydraulic Systems & Automation Equipment

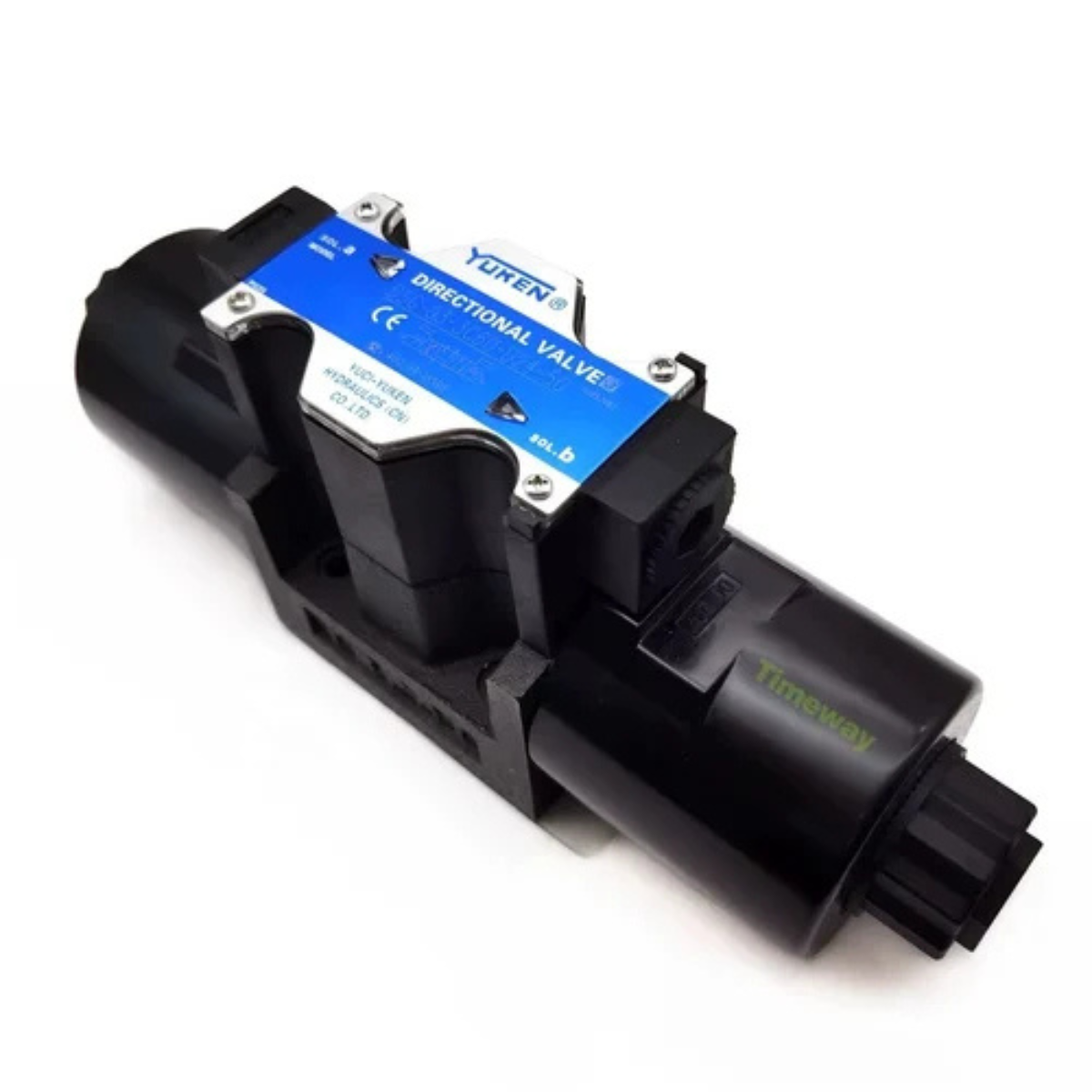

DSG 03 3C4 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

DSG 03 3C4 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

₹8,500

Specification	Details
Product Name	DSG 03 3C4 D24 N1 50 Direction Control Valve
Valve Type	Solenoid Operated Direction Control Valve
Model	DSG-03-3C4-D24-N1-50
Operation	Electrically Operated
Coil Voltage	24V DC
Mounting Type	CETOP 03 / NG6
Spool Type	3C4
Working Medium	Hydraulic Oil
Maximum Operating Pressure	315 Bar
Maximum Flow Rate	Up to 80 L/min
Body Material	High Strength Cast Iron
Seal Material	NBR
Application	Industrial Hydraulic Systems
Installation	Subplate Mounted
Country of Origin	As Per Manufacturer

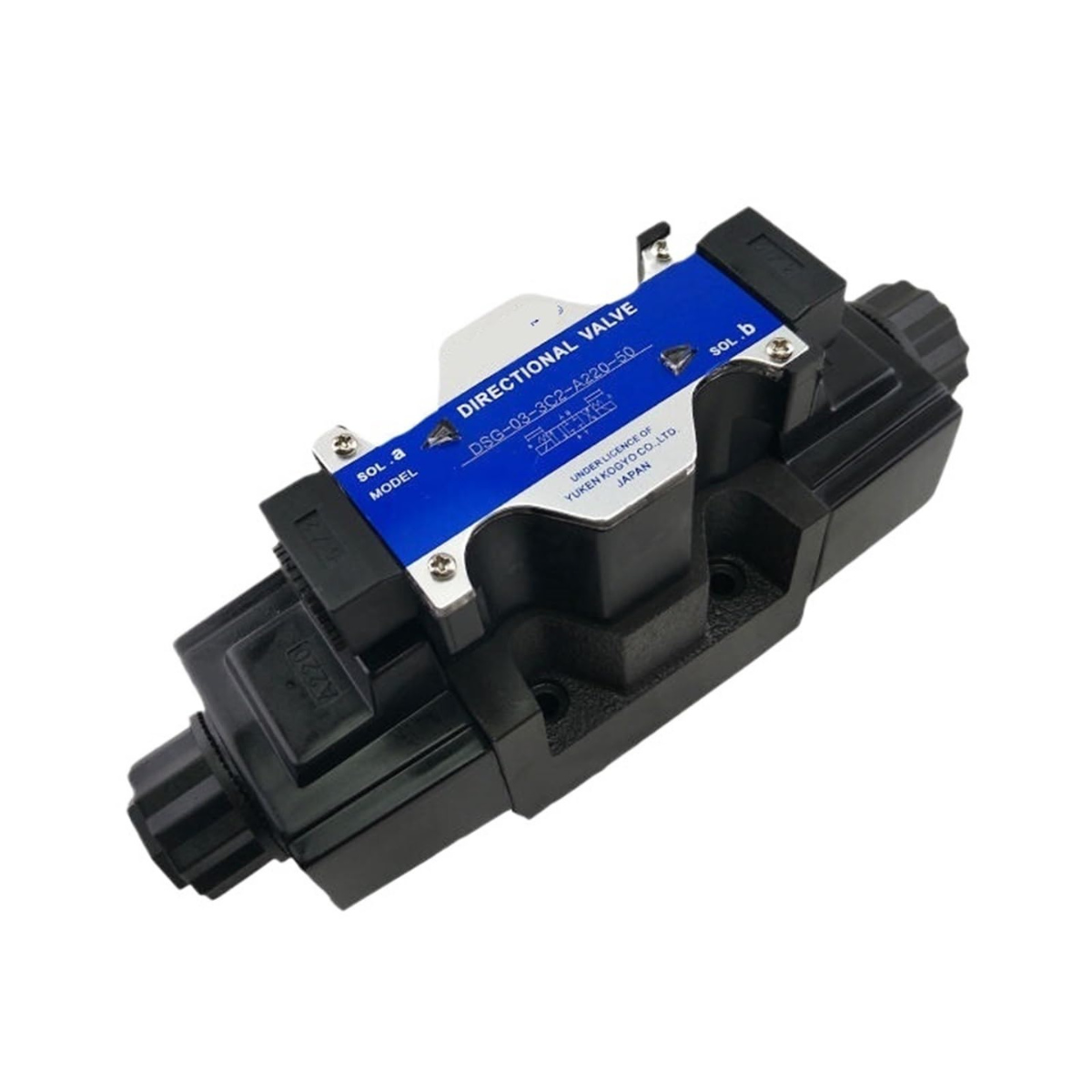

DSG 03 2B2 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

DSG 03 2B2 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

₹4,500

Specification	Value
Product Name	DSG 03 2B2 D24 N1 50 Direction Control Valve
Valve Type	Hydraulic Direction Control Valve
Model Number	DSG 03 2B2 D24 N1 50
Operation Type	Solenoid Operated
Coil Voltage	24V DC
Mounting Type	Subplate Mount (NG6 / CETOP 03 Compatible)
Flow Direction	Directional Hydraulic Flow Control
Body Material	High-Strength Cast Iron
Maximum Operating Pressure	315 Bar
Maximum Flow Rate	60 L/min
Fluid Type	Hydraulic Oil
Operating Temperature	-20°C to +70°C
Seal Material	Nitrile (NBR)
Application	Industrial Hydraulic Systems

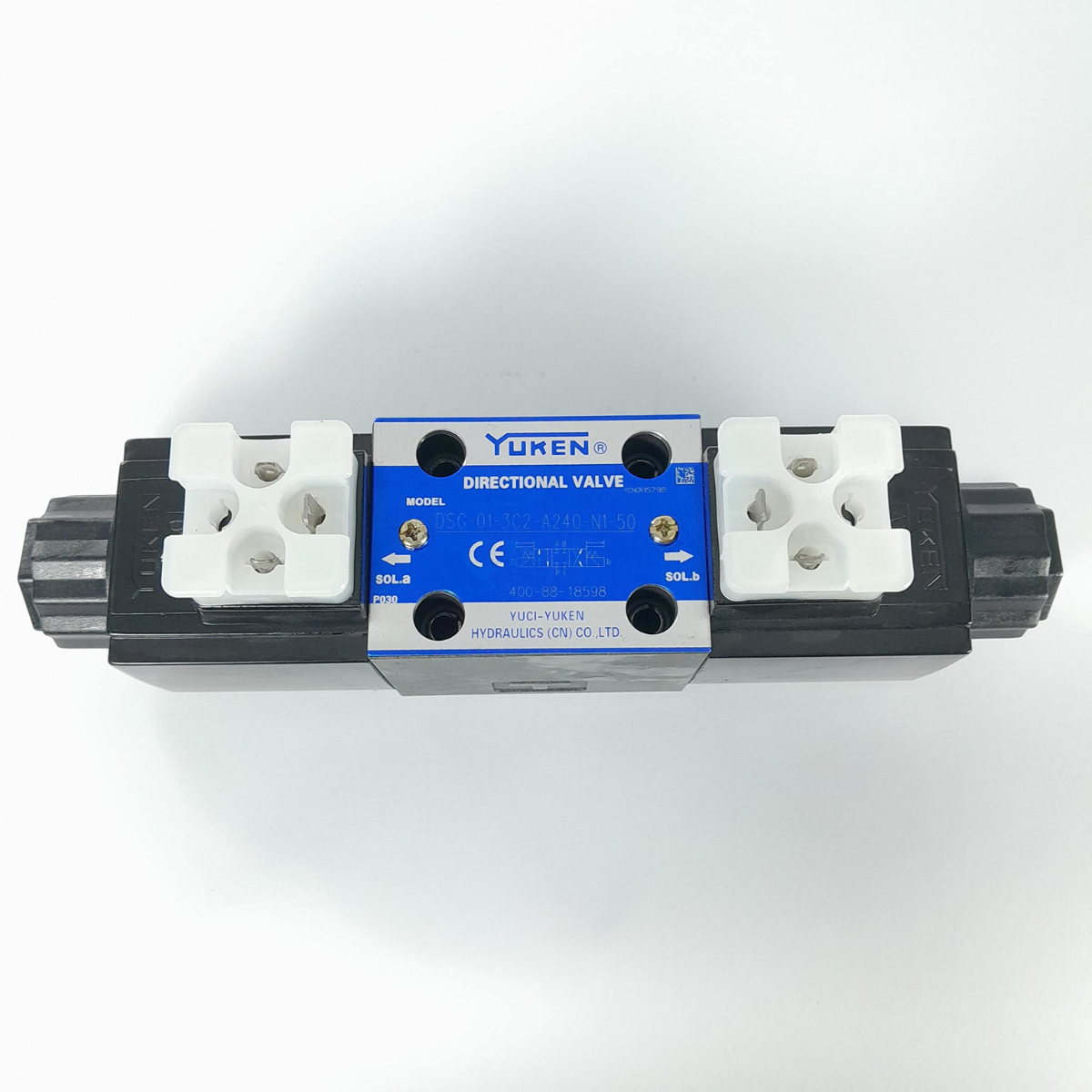

DSG 01 3C2 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

DSG 01 3C2 D24 N1 50 Direction Control Valve | 24V DC Hydraulic Solenoid Valve

₹3,900

Specification	Value
Product Name	DSG 01 3C2 D24 N1 50 Direction Control Valve
Valve Type	Solenoid Operated Direction Control Valve
Model	DSG-01-3C2-D24-N1-50
Operating Voltage	24V DC
Valve Function	4-Way, 3-Position
Mounting Type	Subplate Mount (NG6 / CETOP 3)
Flow Rate	Up to 60 L/min
Maximum Operating Pressure	315 Bar
Hydraulic Fluid	Mineral Hydraulic Oil
Operating Temperature	-20°C to +70°C
Coil Type	DC Solenoid Coil
Body Material	High-Strength Cast Iron
Application	Industrial Hydraulic Systems
Country of Origin	As Per Manufacturer
